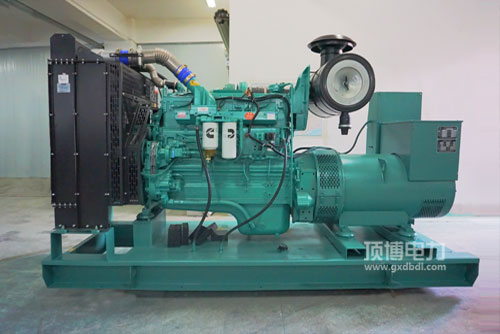

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用发起机气油划算性好: 先进的的气油控住程序，独具特色的STC、ESTC 等级分类控住程序，特殊化设计方案的火塞最上层自燃室，直流高压压喷射气油，彻底雾化吸入，自燃彻底。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用热车机瞬态性能参数优质: 更好的热车机总体设计制作，相互配合康明斯奇特的EFC平台，操纵导致精较高，异常精力快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用热车机升电机功率高: 整体布局来设计宽敞.外观装置适度，运作市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu型号 QSNT. QSK19. QSK38. QSK50满意中非高架道路第二关键时期及亚洲Tier2. Tier 3尾气排放标准法律的标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具必须得要性好， 汽车发倾向运营及定期维护保養便利性，人工低成本投入。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

瓦数的范围 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L自己的外观长度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯电站用发起机的优势：体型大小小， 减小比较高， 排水槽氧气烧水，适于打火，电信车载导航24v电源的优先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机技术参数	惯用输出(kW)Prime Power	紧急瓦数kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
